XsimはFoundation版のOpenFOAMでの設定であり、ESI版のOpenFOAMで計算させたい場合はXsimでエクスポートした設定ファイルでは設定ファイルの記述方法が、Foundation版とESI版では微妙に異なるため計算エラーが出ます。
ただ、全く参考にできないのかというとそうではなく、Xsimでエクスポートした設定ファイルを参考にESI版に書き換えるのは割と簡単にできます。
本記事は熱流体の非定常解析を例にどれくらいFoundation版とESI版とで異なるのかを見ています。
おそらくを変更するだけで良いだろうということがわかりました。
- 特徴線の設定
- snappyHexMeshの設定
- 計算制御の設定
※Foundation版も最新版だとかなり変更があるようですので、比較的ESI版との差異が少ない古いバージョンOpenFOAM10のFoundation版をエクスポートしました。
モデル作成
- FreeCADでモデル作成→stlファイルをエクスポート
- OpenFOAMの設定はXsimで行う

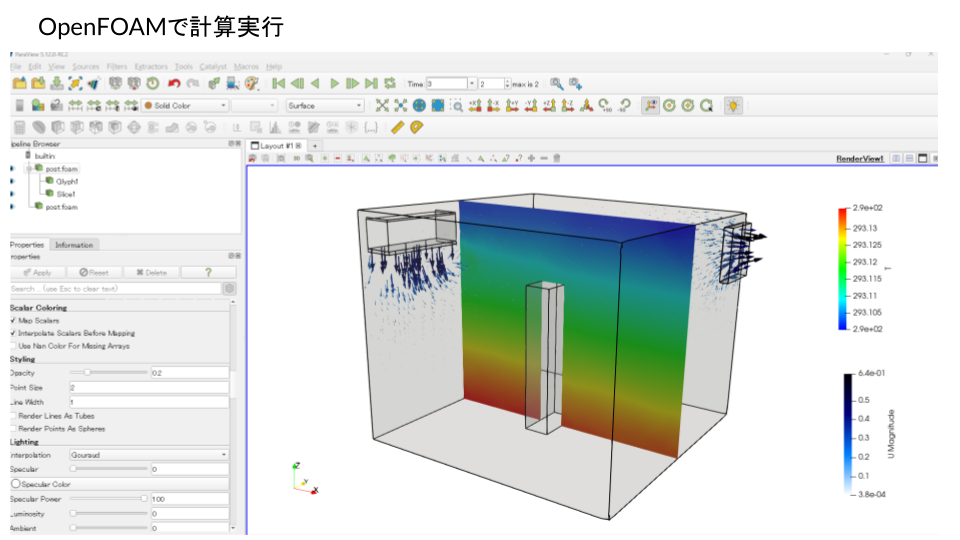

以上の手順は以下のスライドにまとめています。
途中FreeCADからstlファイルを出力するPythonスクリプトはこちらをご参考ください。
この動画では面を分割する方法もあります。
あわせて読みたい
以下はFoundation版（Xsim）とESI版の比較になります。
Foundation版も最新版だとかなり変更があるようですので、比較的ESI版との差異が少ない古いバージョンOpenFOAM10のFoundation版をエクスポートしました。
Foundation版：OpenFOAM10
ESI版：OpenFOAM v2412
ベースメッシュ：blockMesh
system/blockMeshDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 |
FoamFile { version 2.0; format ascii; class dictionary; location "system"; object blockMeshDict; } vertices ( (-0.25 -0.25 -0.25) (3.35 -0.25 -0.25) (3.35 3.25 -0.25) (-0.25 3.25 -0.25) (-0.25 -0.25 2.75) (3.35 -0.25 2.75) (3.35 3.25 2.75) (-0.25 3.25 2.75) ); blocks ( hex (0 1 2 3 4 5 6 7) (24 23 20) simpleGrading (1 1 1) ); defaultPatch { type patch; } boundary (); |
これをESI版に変更
system/blockMeshDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 |
FoamFile { version 2.0; format ascii; class dictionary; object blockMeshDict; } scale 1; vertices ( (-0.25 -0.25 -0.25) (3.35 -0.25 -0.25) (3.35 3.25 -0.25) (-0.25 3.25 -0.25) (-0.25 -0.25 2.75) (3.35 -0.25 2.75) (3.35 3.25 2.75) (-0.25 3.25 2.75) ); blocks ( hex (0 1 2 3 4 5 6 7) (24 23 20) simpleGrading (1 1 1) ); edges ( ); defaultPatch { type patch; } boundary (); mergePatchPairs ( ); |
ご覧の通りほとんど同じです。
特徴線の抽出：surfaceFeaturesDict
これが一番変わっているかもしれません。
そもそもファイル名が違います。
system/surfaceFeaturesDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
FoamFile { version 2.0; format ascii; class dictionary; location "system"; object surfaceFeaturesDict; } surfaces ( "model.stl" ); includedAngle 165.0 subsetFeatures { nonManifoldEdges no; openEdges yes; } writeObj yes; |
Foundation版の実行コマンドはsurfaceFeaturesです。
これをESI版に変更
system/surfaceFeatureExtractDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 |
FoamFile { version 2.0; format ascii; class dictionary; object surfaceFeatureExtractDict; } model.stl { // How to obtain raw features (extractFromFile || extractFromSurface) extractionMethod extractFromSurface; // Mark edges whose adjacent surface normals are at an angle less // than includedAngle as features // - 0 : selects no edges // - 180: selects all edges includedAngle 150; subsetFeatures { // Keep nonManifold edges (edges with >2 connected faces) nonManifoldEdges no; // Keep open edges (edges with 1 connected face) openEdges yes; } // Write options // Write features to obj format for postprocessing writeObj yes; } |
ESI版の実行コマンドはsurfaceFeatureExtractです。
テキストの設定も実行コマンドも異なるので注意。
メッシュ作成：snappyHexMeshDict
こちらはそこまで変わっていません。
system/surfaceFeaturesDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 |
FoamFile { version 2.0; format ascii; class dictionary; location "system"; object snappyHexMeshDict; } castellatedMesh true; snap true; addLayers true; geometry { model.stl { type triSurfaceMesh; name model; regions { Outlet_press_2-4_3 { name Outlet_press_2-4_3; } Outlet_walls_2-4_3 { name Outlet_walls_2-4_3; } XMax_wall_2-4_3 { name XMax_wall_2-4_3; } XMin_wall_2-4_3 { name XMin_wall_2-4_3; } YMax_wall_2-4_3 { name YMax_wall_2-4_3; } YMin_wall_2-4_3 { name YMin_wall_2-4_3; } ZMax_wall_2-4_3 { name ZMax_wall_2-4_3; } ZMin_wall_2-4_3 { name ZMin_wall_2-4_3; } airInlet_vol_2-4_3 { name airInlet_vol_2-4_3; } airOutlet_vol_2-4_3 { name airOutlet_vol_2-4_3; } airWalls_wall_2-4_3 { name airWalls_wall_2-4_3; } human_walls_2-4_3 { name human_walls_2-4_3; } } } } castellatedMeshControls { features ( { file "model.eMesh"; level 2; } ); refinementSurfaces { model { level (0 0); regions { Outlet_press_2-4_3 { level (0 0); patchInfo { type patch; } } Outlet_walls_2-4_3 { level (0 0); patchInfo { type wall; } } XMax_wall_2-4_3 { level (0 0); patchInfo { type wall; } } XMin_wall_2-4_3 { level (0 0); patchInfo { type wall; } } YMax_wall_2-4_3 { level (0 0); patchInfo { type wall; } } YMin_wall_2-4_3 { level (0 0); patchInfo { type wall; } } ZMax_wall_2-4_3 { level (0 0); patchInfo { type wall; } } ZMin_wall_2-4_3 { level (0 0); patchInfo { type wall; } } airInlet_vol_2-4_3 { level (0 0); patchInfo { type patch; } } airOutlet_vol_2-4_3 { level (0 0); patchInfo { type wall; } } airWalls_wall_2-4_3 { level (0 0); patchInfo { type wall; } } human_walls_2-4_3 { level (0 0); patchInfo { type wall; } } } } } refinementRegions {} locationInMesh (1.55 1.5 1.25); maxLocalCells 100000000; maxGlobalCells 100000000; minRefinementCells 1; nCellsBetweenLevels 3; resolveFeatureAngle 30; allowFreeStandingZoneFaces false; } snapControls { nSolveIter 30; nSmoothPatch 3; tolerance 4.0; nRelaxIter 5; nFeatureSnapIter 10; } addLayersControls { layers { Outlet_press_2-4_3 { nSurfaceLayers 3; } Outlet_walls_2-4_3 { nSurfaceLayers 3; } airInlet_vol_2-4_3 { nSurfaceLayers 3; } airOutlet_vol_2-4_3 { nSurfaceLayers 3; } human_walls_2-4_3 { nSurfaceLayers 3; } } relativeSizes true; expansionRatio 1.0; finalLayerThickness 0.3; minThickness 0.03; nGrow 1; featureAngle 60; nRelaxIter 5; nSmoothSurfaceNormals 1; nSmoothNormals 3; nSmoothThickness 10; maxFaceThicknessRatio 0.5; maxThicknessToMedialRatio 0.3; minMedianAxisAngle 130; nBufferCellsNoExtrude 0; nLayerIter 50; nRelaxedIter 20; } meshQualityControls { maxNonOrtho 65; maxBoundarySkewness 20; maxInternalSkewness 4; maxConcave 80; minFlatness 0.5; minVol 1.00E-13; minTetQuality -1e30; minArea -1; minTwist 0.05; minDeterminant 0.001; minFaceWeight 0.05; minVolRatio 0.01; minTriangleTwist -1; nSmoothScale 4; errorReduction 0.75; relaxed { maxNonOrtho 180; } } debug 0; mergeTolerance 1e-5; |
これをESI版に変更
system/snappyHexMeshDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 |
FoamFile { version 2.0; format ascii; class dictionary; object snappyHexMeshDict; } // Which of the steps to run castellatedMesh true; snap true; addLayers true; // Geometry. Definition of all surfaces. All surfaces are of class // searchableSurface. // Surfaces are used // - to specify refinement for any mesh cell intersecting it // - to specify refinement for any mesh cell inside/outside/near // - to 'snap' the mesh boundary to the surface geometry { model.stl { type triSurfaceMesh; name model; regions { Outlet_press_2-4_3 { name Outlet_press_2-4_3; } Outlet_walls_2-4_3 { name Outlet_walls_2-4_3; } XMax_wall_2-4_3 { name XMax_wall_2-4_3; } XMin_wall_2-4_3 { name XMin_wall_2-4_3; } YMax_wall_2-4_3 { name YMax_wall_2-4_3; } YMin_wall_2-4_3 { name YMin_wall_2-4_3; } ZMax_wall_2-4_3 { name ZMax_wall_2-4_3; } ZMin_wall_2-4_3 { name ZMin_wall_2-4_3; } airInlet_vol_2-4_3 { name airInlet_vol_2-4_3; } airOutlet_vol_2-4_3 { name airOutlet_vol_2-4_3; } airWalls_wall_2-4_3 { name airWalls_wall_2-4_3; } human_walls_2-4_3 { name human_walls_2-4_3; } } } } // Settings for the castellatedMesh generation. castellatedMeshControls { // Refinement parameters // ~~~~~~~~~~~~~~~~~~~~~ // If local number of cells is >= maxLocalCells on any processor // switches from from refinement followed by balancing // (current method) to (weighted) balancing before refinement. maxLocalCells 100000; // Overall cell limit (approximately). Refinement will stop immediately // upon reaching this number so a refinement level might not complete. // Note that this is the number of cells before removing the part which // is not 'visible' from the keepPoint. The final number of cells might // actually be a lot less. maxGlobalCells 2000000; // The surface refinement loop might spend lots of iterations refining just a // few cells. This setting will cause refinement to stop if <= minimumRefine // are selected for refinement. Note: it will at least do one iteration // (unless the number of cells to refine is 0) minRefinementCells 10; // Allow a certain level of imbalance during refining // (since balancing is quite expensive) // Expressed as fraction of perfect balance (= overall number of cells / // nProcs). 0=balance always. maxLoadUnbalance 0.10; // Number of buffer layers between different levels. // 1 means normal 2:1 refinement restriction, larger means slower // refinement. nCellsBetweenLevels 3; // Explicit feature edge refinement // ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ // Specifies a level for any cell intersected by its edges. // This is a featureEdgeMesh, read from constant/triSurface for now. features ( { file "model.eMesh"; level 2; } ); // Surface based refinement // ~~~~~~~~~~~~~~~~~~~~~~~~ // Specifies two levels for every surface. The first is the minimum level, // every cell intersecting a surface gets refined up to the minimum level. // The second level is the maximum level. Cells that 'see' multiple // intersections where the intersections make an // angle > resolveFeatureAngle get refined up to the maximum level. refinementSurfaces { model { level (0 0); regions { Outlet_press_2-4_3 { level (0 0); patchInfo { type patch; } } Outlet_walls_2-4_3 { level (0 0); patchInfo { type wall; } } XMax_wall_2-4_3 { level (0 0); patchInfo { type wall; } } XMin_wall_2-4_3 { level (0 0); patchInfo { type wall; } } YMax_wall_2-4_3 { level (0 0); patchInfo { type wall; } } YMin_wall_2-4_3 { level (0 0); patchInfo { type wall; } } ZMax_wall_2-4_3 { level (0 0); patchInfo { type wall; } } ZMin_wall_2-4_3 { level (0 0); patchInfo { type wall; } } airInlet_vol_2-4_3 { level (0 0); patchInfo { type patch; } } airOutlet_vol_2-4_3 { level (0 0); patchInfo { type wall; } } airWalls_wall_2-4_3 { level (0 0); patchInfo { type wall; } } human_walls_2-4_3 { level (0 0); patchInfo { type wall; } } } } } // Resolve sharp angles resolveFeatureAngle 30; // Region-wise refinement // ~~~~~~~~~~~~~~~~~~~~~~ // Specifies refinement level for cells in relation to a surface. One of // three modes // - distance. 'levels' specifies per distance to the surface the // wanted refinement level. The distances need to be specified in // descending order. // - inside. 'levels' is only one entry and only the level is used. All // cells inside the surface get refined up to the level. The surface // needs to be closed for this to be possible. // - outside. Same but cells outside. refinementRegions { // refinementBox // { // mode inside; // levels ((1E15 4)); // } } // Mesh selection // ~~~~~~~~~~~~~~ // After refinement patches get added for all refinementSurfaces and // all cells intersecting the surfaces get put into these patches. The // section reachable from the locationInMesh is kept. // NOTE: This point should never be on a face, always inside a cell, even // after refinement. locationInMesh (1.55 1.5 1.25); // Whether any faceZones (as specified in the refinementSurfaces) // are only on the boundary of corresponding cellZones or also allow // free-standing zone faces. Not used if there are no faceZones. allowFreeStandingZoneFaces true; } // Settings for the snapping. snapControls { //- Number of patch smoothing iterations before finding correspondence // to surface nSmoothPatch 3; //- Relative distance for points to be attracted by surface feature point // or edge. True distance is this factor times local // maximum edge length. tolerance 2.0; //- Number of mesh displacement relaxation iterations. nSolveIter 30; //- Maximum number of snapping relaxation iterations. Should stop // before upon reaching a correct mesh. nRelaxIter 5; // Feature snapping //- Number of feature edge snapping iterations. // Leave out altogether to disable. nFeatureSnapIter 10; //- Detect (geometric only) features by sampling the surface // (default=false). implicitFeatureSnap false; //- Use castellatedMeshControls::features (default = true) explicitFeatureSnap true; //- Detect points on multiple surfaces (only for explicitFeatureSnap) multiRegionFeatureSnap false; } // Settings for the layer addition. addLayersControls { // Are the thickness parameters below relative to the undistorted // size of the refined cell outside layer (true) or absolute sizes (false). relativeSizes true; // Per final patch (so not geometry!) the layer information layers { Outlet_press_2-4_3 { nSurfaceLayers 3; } Outlet_walls_2-4_3 { nSurfaceLayers 3; } airInlet_vol_2-4_3 { nSurfaceLayers 3; } airOutlet_vol_2-4_3 { nSurfaceLayers 3; } human_walls_2-4_3 { nSurfaceLayers 3; } } // Expansion factor for layer mesh expansionRatio 1.0; // Wanted thickness of final added cell layer. If multiple layers // is the thickness of the layer furthest away from the wall. // Relative to undistorted size of cell outside layer. // See relativeSizes parameter. finalLayerThickness 0.3; // Minimum thickness of cell layer. If for any reason layer // cannot be above minThickness do not add layer. // Relative to undistorted size of cell outside layer. minThickness 0.1; // If points get not extruded do nGrow layers of connected faces that are // also not grown. This helps convergence of the layer addition process // close to features. // Note: changed(corrected) w.r.t 1.7.x! (didn't do anything in 1.7.x) nGrow 0; // Advanced settings // When not to extrude surface. 0 is flat surface, 90 is when two faces // are perpendicular featureAngle 60; // At non-patched sides allow mesh to slip if extrusion direction makes // angle larger than slipFeatureAngle. slipFeatureAngle 30; // Maximum number of snapping relaxation iterations. Should stop // before upon reaching a correct mesh. nRelaxIter 3; // Number of smoothing iterations of surface normals nSmoothSurfaceNormals 1; // Number of smoothing iterations of interior mesh movement direction nSmoothNormals 3; // Smooth layer thickness over surface patches nSmoothThickness 10; // Stop layer growth on highly warped cells maxFaceThicknessRatio 0.5; // Reduce layer growth where ratio thickness to medial // distance is large maxThicknessToMedialRatio 0.3; // Angle used to pick up medial axis points // Note: changed(corrected) w.r.t 1.7.x! 90 degrees corresponds to 130 // in 1.7.x. minMedialAxisAngle 90; // Create buffer region for new layer terminations nBufferCellsNoExtrude 0; // Overall max number of layer addition iterations. The mesher will exit // if it reaches this number of iterations; possibly with an illegal // mesh. nLayerIter 50; } // Generic mesh quality settings. At any undoable phase these determine // where to undo. meshQualityControls { #include "meshQualityDict" // Advanced //- Number of error distribution iterations nSmoothScale 4; //- Amount to scale back displacement at error points errorReduction 0.75; } // Advanced // Write flags writeFlags ( scalarLevels layerSets layerFields // write volScalarField for layer coverage ); // Merge tolerance. Is fraction of overall bounding box of initial mesh. // Note: the write tolerance needs to be higher than this. mergeTolerance 1e-6; // ************************************************************************* // |
実行コマンドは同じです。
計算の制御：controlDict
ここも変わっています。
system/controlDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 |
FoamFile { version 2.0; format ascii; class dictionary; location "system"; object controlDict; } application buoyantFoam; startFrom startTime; startTime 0; stopAt endTime; endTime 60; deltaT 0.001; adjustTimeStep on; maxCo 0.9; writeControl adjustableRunTime; writeInterval 1; purgeWrite 0; writeFormat ascii; writePrecision 6; writeCompression off; timeFormat general; timePrecision 6; runTimeModifiable on; functions { #includeFunc residuals(U,p_rgh,h,k,epsilon); #includeFunc cellMinMag(U,writeLocation=yes); #includeFunc cellMaxMag(U,writeLocation=yes); #includeFunc cellMinMag(T,writeLocation=yes); #includeFunc cellMaxMag(T,writeLocation=yes); #includeFunc yPlus; #includeFunc CourantNo; } |
Foundation版の実行コマンドはbuoyantFoamです。
これをESI版に変更
system/controlDict
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 |
FoamFile { version 2.0; format ascii; class dictionary; object controlDict; } application buoyantPimpleFoam; startFrom startTime; startTime 0; stopAt endTime; endTime 60; deltaT 0.001; writeControl adjustableRunTime;//timeStep; writeInterval 1; purgeWrite 0; writeFormat ascii; writePrecision 6; writeCompression off; timeFormat general; timePrecision 6; runTimeModifiable true; adjustTimeStep on; maxCo 0.9; functions { #includeFunc residuals(U,p_rgh,h,k,epsilon); #includeFunc cellMinMag(U,writeLocation=yes); #includeFunc cellMaxMag(U,writeLocation=yes); #includeFunc cellMinMag(T,writeLocation=yes); #includeFunc cellMaxMag(T,writeLocation=yes); #includeFunc yPlus; #includeFunc CourantNo; } // ************************************************************************* // |
ESI版の実行コマンドはbuoyantPimpleFoamです。
テキストはそこまで変更ないですが実行コマンドが異なります。
